A capture card for camcorders is a small device that takes the audio and video coming out of a camcorder – through HDMI, RCA A/V, FireWire or SDI – and turns it into a digital signal your computer can record, stream or edit. In short: the camcorder’s OUT port goes into the card, the card goes into your PC.
You need one when you want to use an older camcorder as a webcam, digitize MiniDV, Digital8, HDV, Hi8 or VHS tapes from a camcorder deck, or archive professional SDI footage. You do not need one when your camcorder already transfers straight over USB or writes to a card you can pull out.
We compared the 12 cards below across every output type a camcorder can throw at a computer, and the single biggest lesson is that camcorder gear is not interchangeable. A card that reads HDMI will never touch the RCA output of a 2004 camcorder, and a card that reads RCA cannot pull a bit-perfect copy off a MiniDV tape.
This guide is organized the way the decision actually works: first by the port on the back of your camcorder, then by the job you need done. Specs come from the manufacturer listings and owner reviews, and we have flagged the places where a headline number and the real output do not match.
Table of Contents
Top 3 Picks: Capture Cards for Camcorders in 2026
Elgato Cam Link 4K
- USB 3.0 input
- 1080p60 capture
- Driver-free on Mac and Windows
- 2 year warranty
Elgato 4K X
- HDMI 2.1 input and output
- 4K144 and 1080p240 capture
- VRR and HDR10 passthrough
- USB 3.2 Gen 2
Guermok GM-29A
- 4K30 HDMI input
- 1080p60 and 2K30 output
- No drivers or external power
- USB-C adapter included
Best Capture Cards for Camcorders in 2026 at a Glance
| Product | Specs | Action |
|---|---|---|
| Elgato Cam Link 4K |
|
Check Latest Price |
| Elgato 4K X |
|
Check Latest Price |
 UGREEN 1080p60 Capture Card |
|
Check Latest Price |
 Blackmagic Design Intensity Pro 4K |
|
Check Latest Price |
| Guermok GM-29A |
|
Check Latest Price |
 BlueAVS 4K HDMI to USB |
|
Check Latest Price |
 VIXLW RCA to USB Converter |
|
Check Latest Price |
 Fulfalic VHS to Digital Capture Card |
|
Check Latest Price |
 LinksTek PCIE-1394A FireWire 400 Card |
|
Check Latest Price |
 Audio Express AXHDCAP |
|
Check Latest Price |
 Dcyfol 1080p60 Capture Device |
|
Check Latest Price |
 VIXLW 1080p60 Cam Link Card |
|
Check Latest Price |

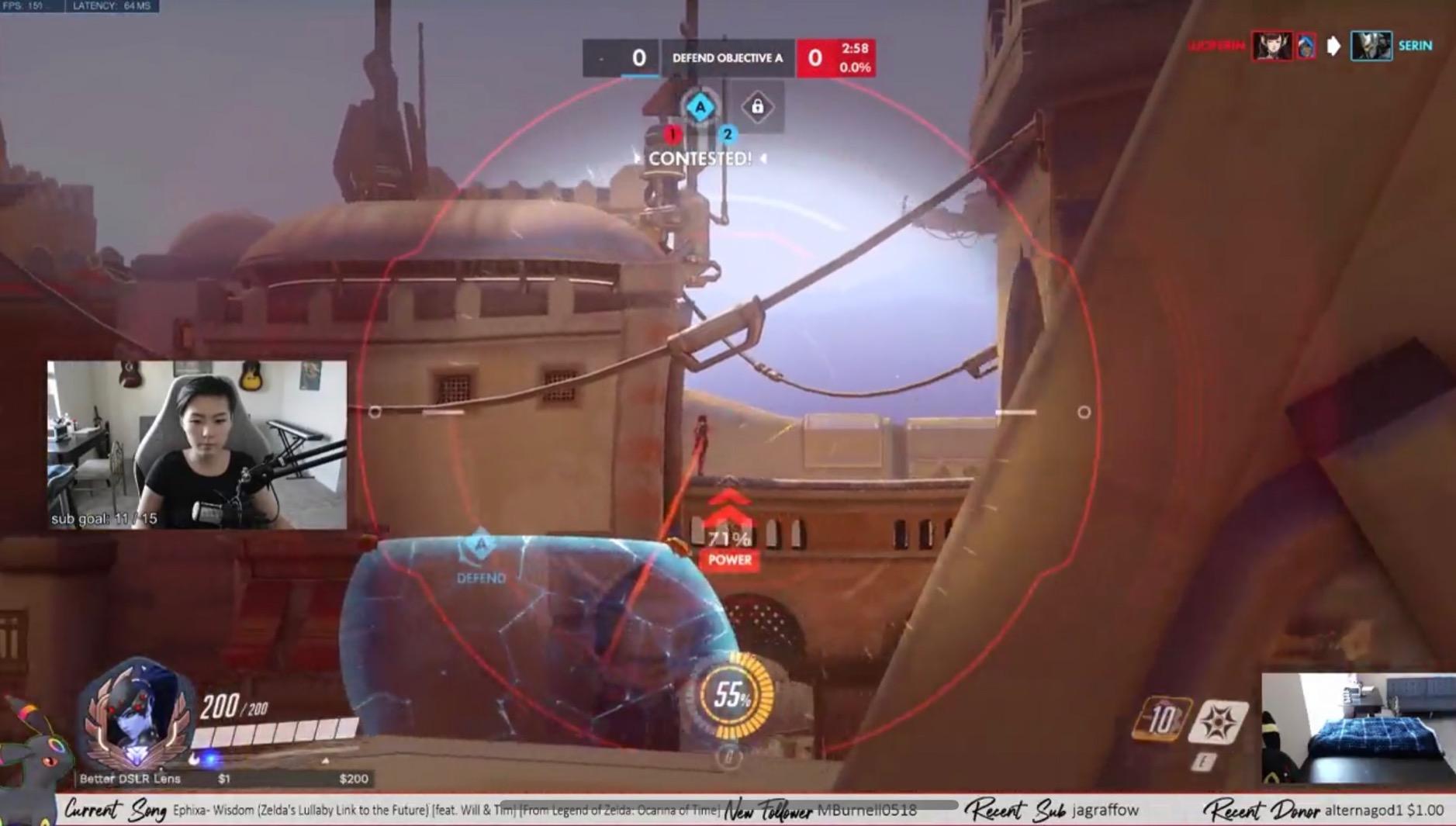

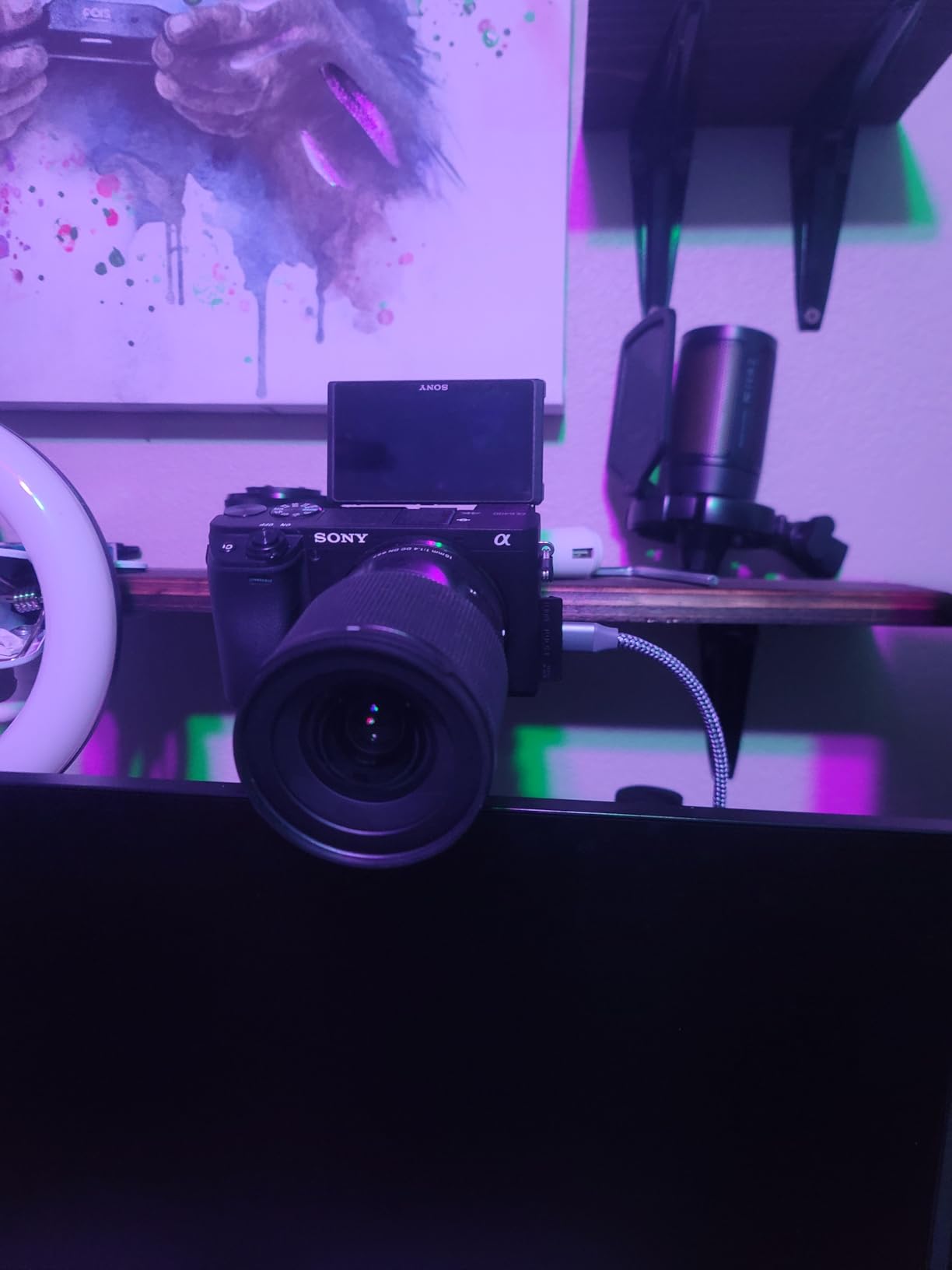

1. Elgato Cam Link 4K: The Best All-Round Capture Card for an HDMI Camcorder
Elgato Cam Link 4K Capture Card for DSLR, Camcorder, Action Cam, USB-A Connector, USB 3.0 Hardware Interface, Black, Windows 10/11 and macOS
USB 3.0
1080p60 capture
4K input
2 year warranty
Pros
- Plug-and-play with no drivers
- seen instantly by OBS and Zoom
- Stable 1080p60 with effectively no added latency
- Works with camcorders DSLRs action cams and phones
- Runs cool through long capture sessions
Cons
- 4K capture on this model tops out at 30 fps
- No HDMI cable included
- Wide USB-A body can block a neighbouring port
The Cam Link 4K is the card we keep reaching for when a camcorder shows up with an HDMI OUT port. It is a small dongle, 20.14 g and roughly 3.19 x 1.22 x 0.47 inches, with one HDMI input and a USB 3.0 plug. There is no passthrough port, which is the single trade-off you accept for that simplicity.
Owners report almost zero setup time. It appears as a standard video input, which means OBS, Zoom and Teams see it without extra drivers, and the image holds 1080p60 without wobble over long sessions.
For our purposes it is the safest recommendation in the list, and the numbers back that up: a 4.6 rating across more than 14k reviews is the deepest owner base of any card here. That matters because when something goes wrong with a capture card, you want a company with a support line rather than a marketplace listing.
The honest limitation is resolution headroom. The listing markets 1080p60 and 4K60, but the hardware in this version captures 4K at 30 fps and tops out at 1080p60 for high frame rates. Almost no camcorder outputs 4K over HDMI without a heavy body, so this rarely comes up in practice.
Who should buy the Cam Link 4K
Anyone with a modern HDMI camcorder who wants a webcam or a clean 1080p60 recording with no software friction. It also works as a field monitor feed into an iPad over USB-C, which is handy on location.
Where it falls short
It cannot loop the signal back to a display, so you cannot record while watching on a big screen. Owners also flag that no HDMI cable ships in the box and that the USB-A housing is wide enough to cover an adjacent port on a dock.

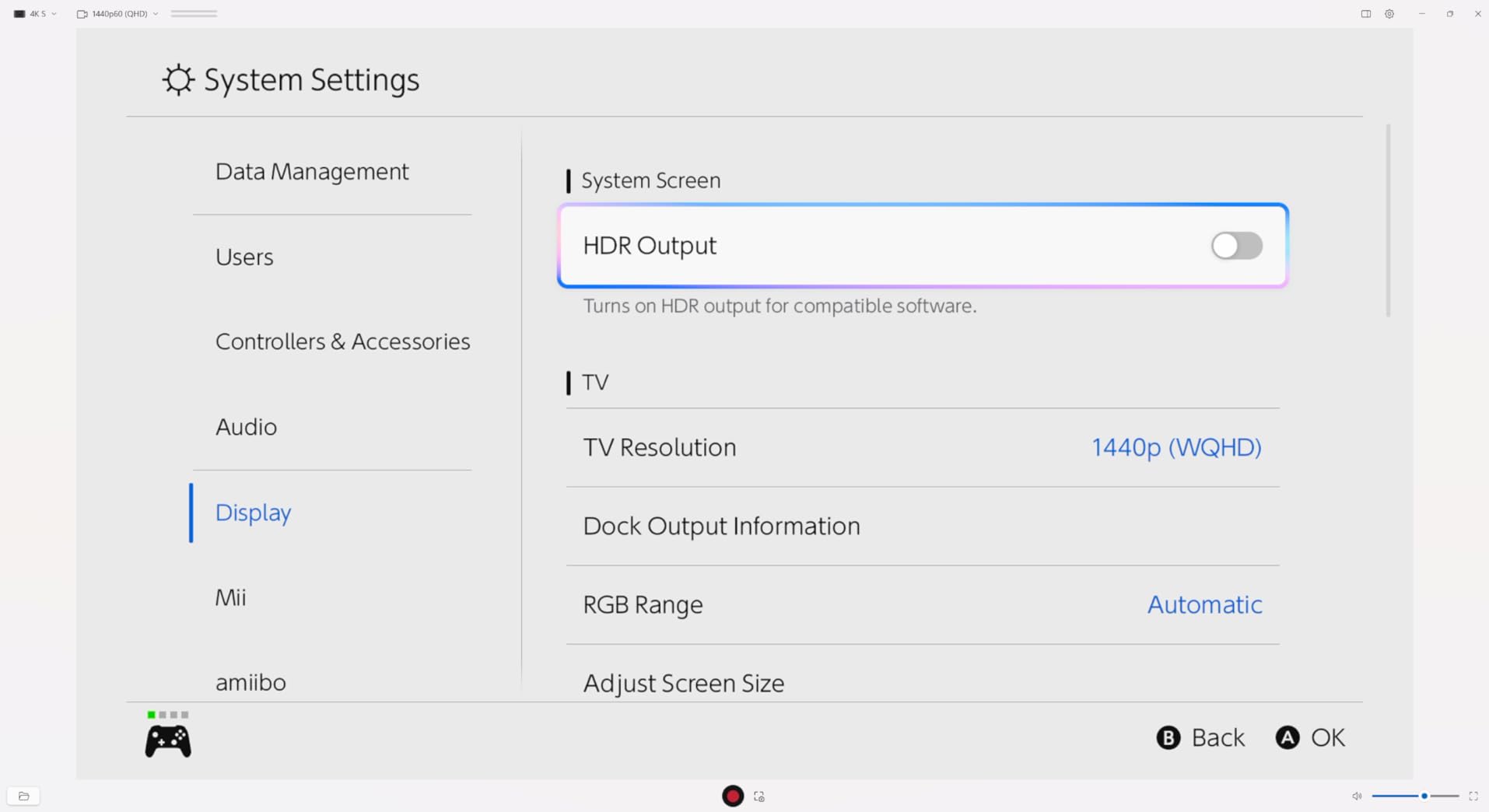

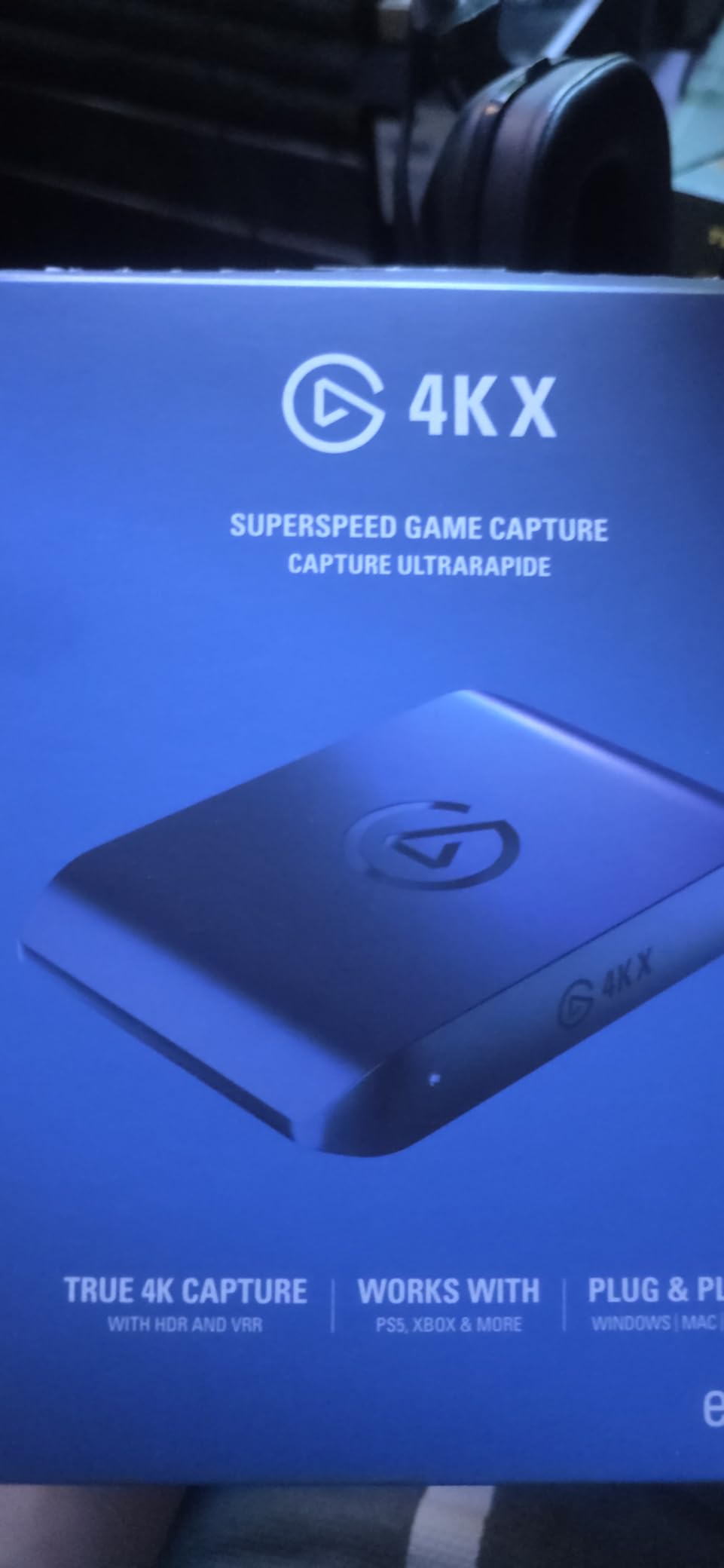

2. Elgato 4K X: Best for Camcorders That Output Above 1080p60
Elgato 4K X Capture Card, HDMI 2.1, 4K144 Ultra-Low Latency
HDMI 2.1 in and out
4K144 and 1080p240
VRR and HDR10 passthrough
USB 3.2 Gen 2
Pros
- HDMI 2.1 bandwidth handles 4K144 and 1080p240 capture
- Very low latency over USB 3.2 Gen 2 keeps audio and video locked
- VRR and HDR10 passthrough for modern displays
- Works with OBS Streamlabs Zoom and Teams
Cons
- Costs several times more than a basic adapter
- Needs a USB 3.2 Gen 2 port and a recent CPU and GPU
- Drops resolution on a USB 3.2 Gen 1 port
The 4K X is built for bandwidth. It carries HDMI 2.1 in and out, documents high frame rates up to 240 fps at 1080p, and supports 4K144 capture. If your camcorder can push 4K60 or 120 fps over HDMI, this is the card that will not be the bottleneck.
Reviews centre on clean, stutter-free high frame rate capture and painless integration with OBS on Windows and macOS. At 0.09 kg and 0.67 x 4.41 x 2.83 inches, it also disappears behind a monitor.
The system requirements are the catch. The manufacturer lists Windows 10 64-bit, macOS 11, a 6th generation Intel Core i5 or AMD Ryzen 5 or better, a GTX 10xx-class graphics card and a USB 3.2 Gen 2 port. Plug it into an older Gen 1 port and the capture resolution falls away.
VRR and HDR10 passthrough make this a strange choice for camcorder work, where variable refresh rate means nothing. It earns its place only if you also record from a console or a modern PC through the same card.
Who should buy the 4K X
Owners of recent high-end camcorders that output 4K at high frame rates, and anyone who wants one card to serve both a camcorder and a console setup. The HDMI OUT port also gives you a clean passthrough loop.
Where it falls short
For a plain 1080p60 camcorder, a simple adapter does the same job for a fraction of the outlay. Overbuying here is the single most common mistake we see in this category.
3. Blackmagic Design Intensity Pro 4K: Best for SDI Broadcast Archiving
Blackmagic Design Intensity Pro 4K PCIe 4 Lane Video Capture Card
PCIe 4-lane
4K30 and 1080p60 uncompressed
4:2:2 chroma
2 year warranty
Pros
- Professional uncompressed 4K30 and 1080p60 capture
- PCIe bandwidth is far steadier than a USB dongle
- Captures 4:2:2 chroma where USB cards give 4:2:0
- Bundled Media Express and Desktop Video
- Integrates tightly with DaVinci Resolve
Cons
- Uncompressed output means huge files and a separate encode step
- Requires opening the case and a free PCIe slot
- Does not register as a standard webcam device
The Intensity Pro 4K is the only true ingest card in this roundup. It is a PCIe 4-lane card at 5.6 x 5.4 x 2.2 inches that you install inside a desktop, and it captures 4K at up to 30 fps or 1080p60 without compressing the image.
That uncompressed 4:2:2 capture is the reason professionals buy it. USB capture devices typically deliver 4:2:0 chroma, which is fine for streaming and noticeably weaker for grading.
Members of r/DataHoarder point to this card specifically for mixed camcorder collections because it handles both analog and HDMI sources in one box. That dual-input need is exactly what a house full of decades-old tapes creates.
The archive argument is straightforward. A PCIe link does not drop frames because a USB bus got busy, so a two-hour digitizing session does not risk a corrupted file halfway through the only copy you have.
Who should buy the Intensity Pro 4K
People archiving broadcast or SDI camcorder footage, and editors who want maximum image quality before grading. It carries ATSC, DVB-T and DVB-T2 tuner support and a two-year warranty.
Where it falls short
Uncompressed files are enormous and need a separate encoding pass, OBS compatibility can be finicky on Windows, and the ports on the bracket are not labelled. It is not a streaming device and it is not portable.

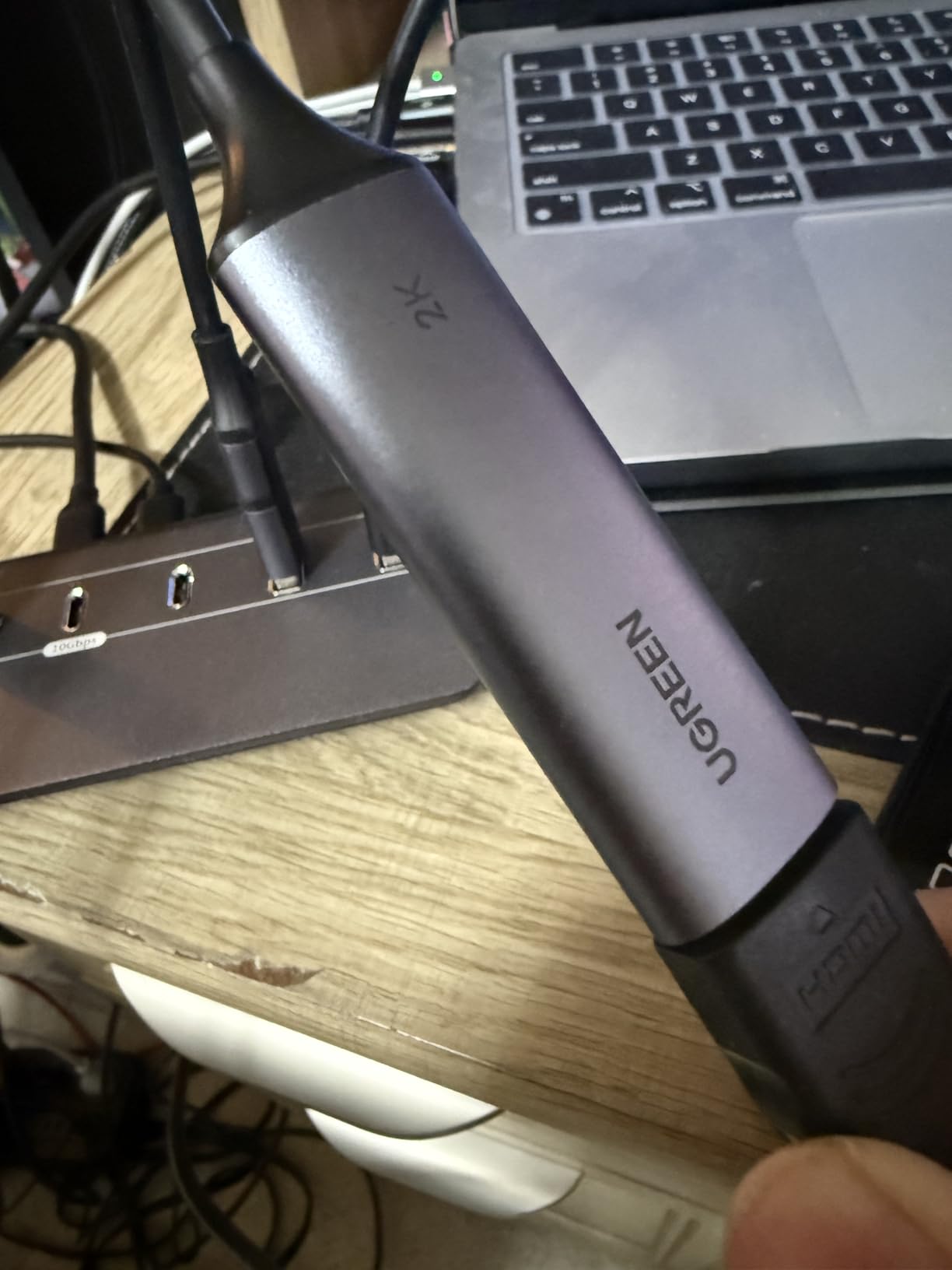

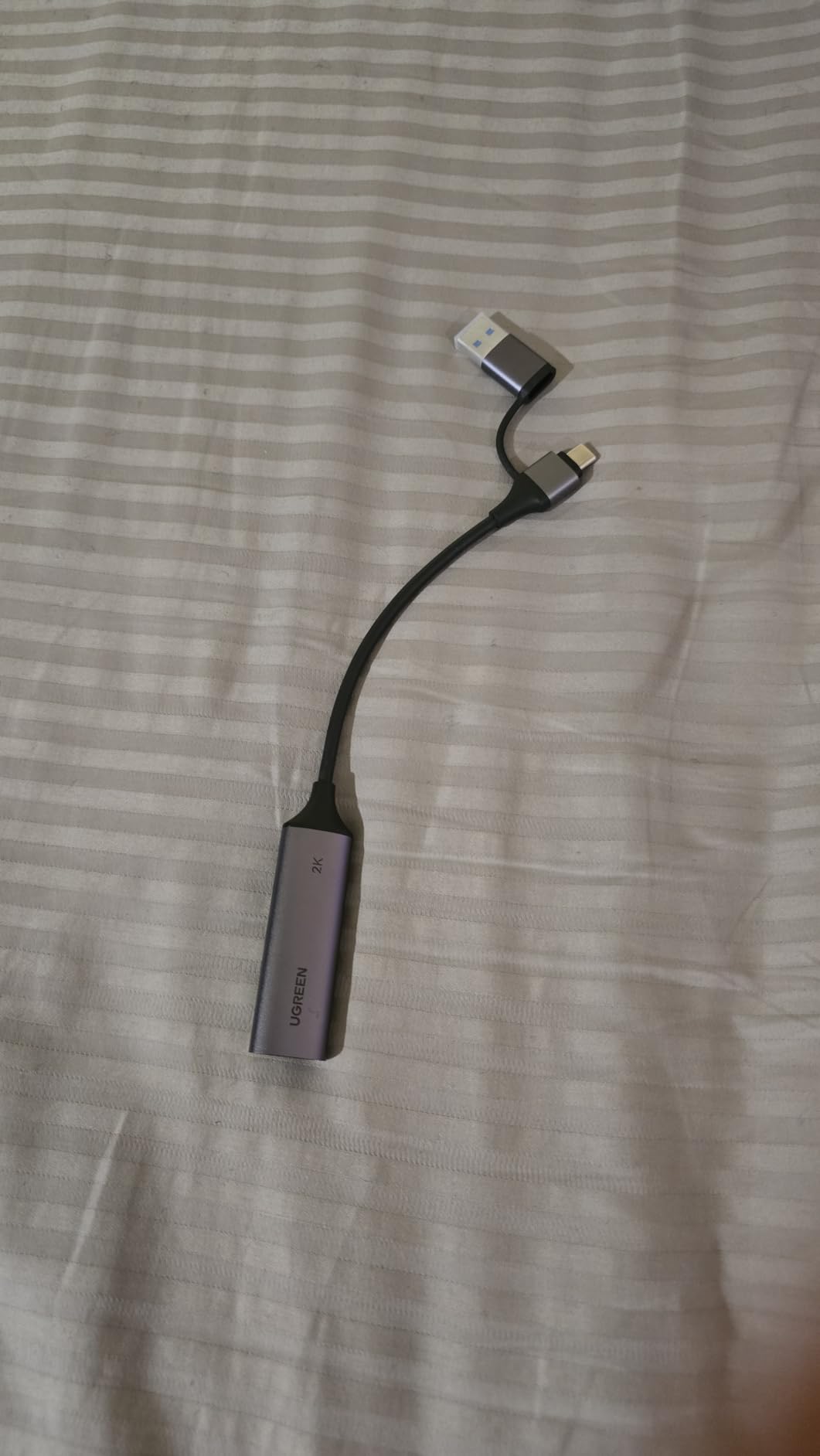

4. UGREEN 1080p60 Capture Card: Best Budget Pick for Laptops
UGREEN 2K@30Hz 1080P 60FPS Video Capture Card 4K Input HDMI to USB 3.0
USB-A and USB-C
4K in 2K30 out
1080p60 capture
24 month warranty
Pros
- Accepts 4K HDMI input and outputs 2K30 or 1080p60
- USB-A and USB-C connectors without adapters
- Driver-free on Windows macOS and Linux
- Aluminium housing dissipates heat and resists interference
Cons
- One-way HDMI to USB flow with no loop out
- 2K output needs the source to support it too
- Backs off to USB 2.0 bandwidth on older ports
The UGREEN card solves one specific annoyance well: modern laptops often have USB-C only. Model 15389 carries both a USB-A and a USB-C connector, so you are not hunting for a dongle in the middle of a session.
It accepts 4K at 30 Hz from the camcorder and hands your computer 2K at 30 Hz or 1080p60, moving data at 5 Gbps over USB 3.0. That 2K ceiling is lower than some rivals, so read it before you commit.
Owners highlight the aluminium alloy casing, which runs cool and shields against interference, plus genuinely painless behaviour across Windows, macOS and Linux. At 50 g and 5.91 x 3.94 x 0.67 inches it is the most substantial budget card here.
Two-year service from UGREEN is a real differentiator in a tier where most rivals offer nothing. It matters if a camcorder sits behind glass at an event and you cannot troubleshoot on site.
Who should buy the UGREEN card
Laptop users on USB-C, and anyone who needs one small card that works across Windows, macOS and Linux without installing drivers. It is a good match for a camcorder that outputs 1080p60 over HDMI.
Where it falls short
There is no HDMI loop-out, so you cannot watch the camcorder on a second screen while recording. The listed minimum is iPadOS 17, and a USB 2.0 port quietly reduces everything.

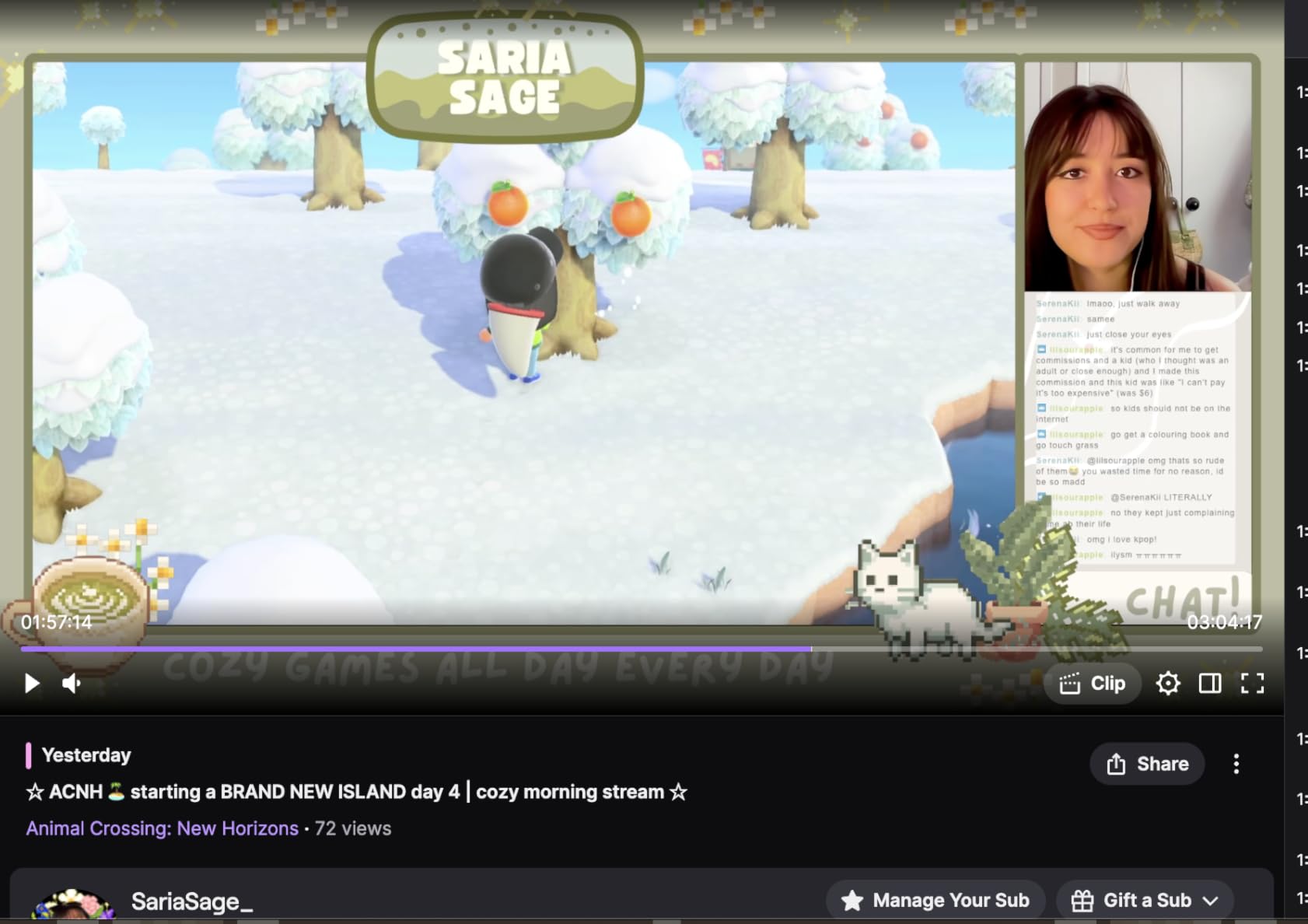

5. Guermok GM-29A: Best Value Portable Card for Camcorders
Guermok Video Capture Card, 4K USB3.0 HDMI to USB C, 1080P 60FPS & 2K 30FPS
4K30 in
1080p60 and 2K30 out
No drivers
30 g aluminium body
Pros
- 4K30 HDMI input with 1080p60 or 2K30 output
- Small 30 g aluminium body
- No drivers and no external power
- Works with cameras DSLRs consoles and Quest headsets
Cons
- Capture only with no loop-out to a display
- Needs capture software to function at all
- OBS must be restarted after audio setup or you get no sound
With more than 3.6k reviews, the GM-29A is the most widely owned card in this guide and the one we have seen recommended most often for straightforward camcorder capture. Model GM-29A takes 4K at 30 Hz in and gives you 2K at 30 Hz or 1920×1080 at 60 Hz out.
The box contains the card, a USB-C to USB-A adapter and a manual, which is everything you need for a camcorder that outputs over HDMI into a laptop.
Owners consistently praise low latency, broad source compatibility and portability in a 30 g aluminium shell that measures 7.48 x 0.98 x 0.39 inches. It draws no external power and installs no drivers on Windows or macOS.
The recurring setup note is worth repeating before you panic: after configuring audio you must restart OBS Studio, otherwise you will sit there convinced the card has no sound. The manufacturer documents this behaviour directly.
Who should buy the Guermok GM-29A
People who want a dependable, cheap card for an HDMI camcorder and do not need to loop video back to a television. The review volume suggests replacement is rarely the worry.
Where it falls short
Signal flow is one way only, so there is no preview loop. Pick the wrong adapter side and the card may not be detected at all, and it needs a genuine USB 3.0 port to hold the advertised resolution.

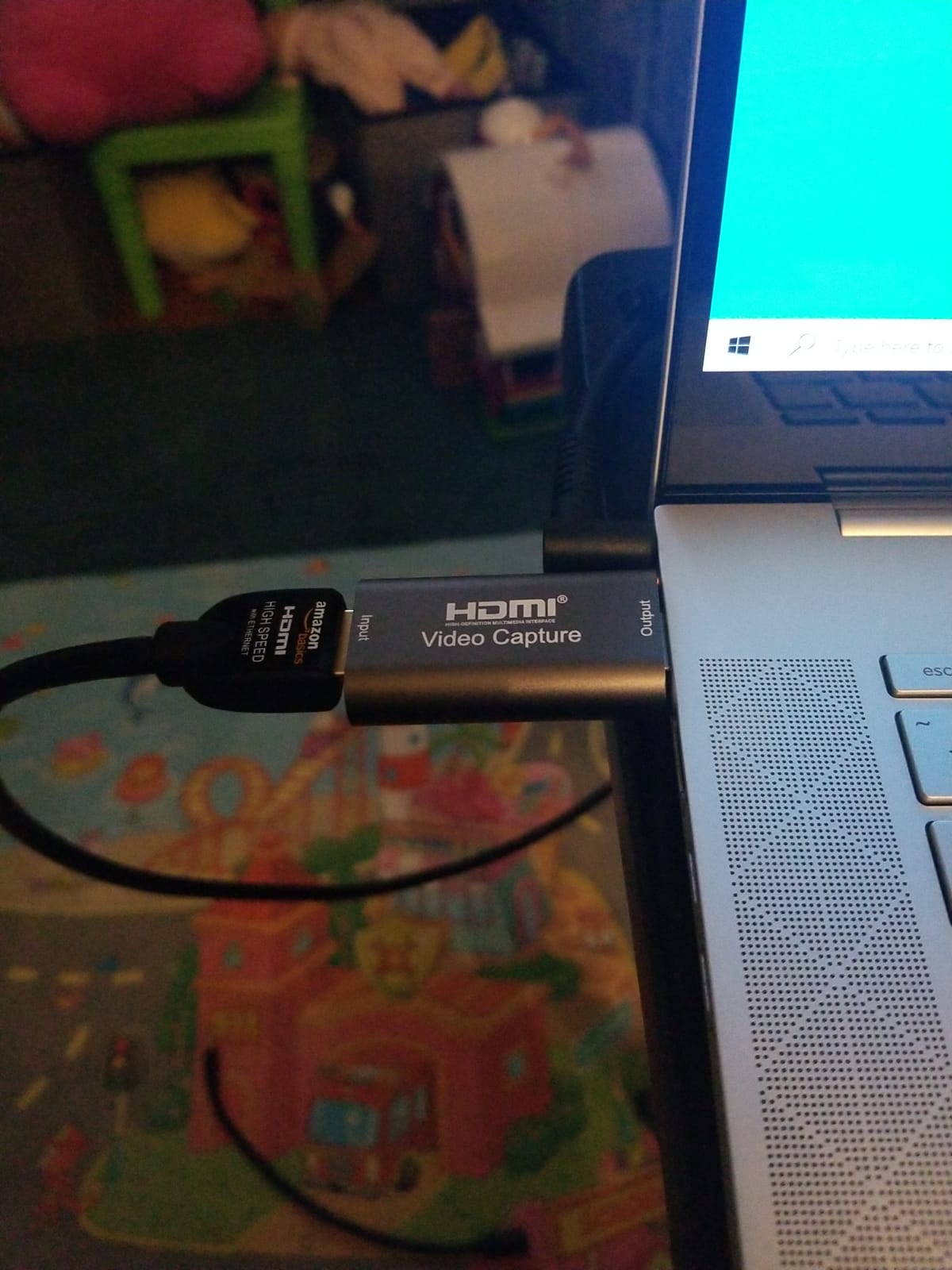

6. BlueAVS 4K HDMI to USB: Best Compact Card Built Around Camcorders
BlueAVS 4K HDMI to USB Capture Card, 1080P@60Hz, Live Streaming & Recording
4K60Hz in
1080p60Hz out
Metal shell
5 year warranty
Pros
- Takes 4K at 60 Hz and outputs 1080p at 60 Hz
- Listed for camcorders DSLRs and action cams explicitly
- No drivers or external power
- Compact 0.06 kg metal shell
Cons
- Included USB extension cable is widely criticised
- Some owners report units failing within weeks
- Will not lock signal through long HDBaseT extenders
- Needs a dedicated USB port and will not work through a hub
BlueAVS is one of the few budget cards whose listing names camcorders as a target device rather than treating them as an afterthought. Model BLAVCC60Hz accepts 4K at 60 Hz over HDMI and outputs 1080p at 60 Hz to your computer.
It needs no drivers, no external power and no bundled software, which means OBS, Zoom or VLC pick it straight up. The 0.06 kg metal shell is genuinely pocketable.
Stream Tech Reviews calls out BlueAVS by name as part of the no-brand HDMI grabber market, and that framing deserves a caveat: the positive reports come from people who received a working unit, while the negative ones cluster hard on durability.
The five-year manufacturer warranty is the strongest coverage claim in this guide. It is also the reason we would try this card rather than avoid it outright.
Who should buy the BlueAVS card
Anyone with a small camcorder setup who wants 1080p60 in a durable, portable body and can return a faulty unit easily. It suits streaming from a fixed tripod position.
Where it falls short
Buyers report the bottom third of the picture flashing or glitching on units that failed within weeks, and the included USB extension cable is frequently criticised. It will not negotiate a signal through HDBaseT extenders or a USB hub.
7. VIXLW RCA to USB Converter: Best for Analog Camcorders and Tape Decks
Capture Card, USB Video Capture Card Device, Audio Video Converter Grabber for RCA to USB-Convert VHS Mini DV VCR Hi8 DVD to Digital, for PC TV Tape Player Camcorder, MAC Windows Vista Compatible
RCA composite and S-Video
NTSC and PAL
720x480 or 720x576
2 year warranty
Pros
- Low-cost route into digitizing VHS Hi8 and DV tape sources
- RCA composite and S-Video on the same unit
- Works with OBS PotPlayer VLC QuickTime and FFmpeg
- Captures audio without a separate sound card
Cons
- Fixed 720x480 or 720x576 output with no standard switch
- No time-base corrector so worn tapes can roll or drop frames
- Outputs deinterlaced video only
- Noticeable hum and slight audio drift on long recordings
This is the card for a camcorder with no HDMI at all. Model BR116 takes RCA composite and S-Video from an A/V OUT jack, converts it to 720×480 or 720×576 depending on the NTSC or PAL source, and sends audio and video over a single USB cable.
Most MiniDV and Digital8 camcorders can output composite video from the same RCA cable, which makes this the most realistic digitizing path when your PC has no FireWire port.
Users consistently recommend it for budget tape digitizing and report surprisingly good colour for the price. It installs its driver automatically, needs no external power and works on Windows, Mac and Linux with OBS Studio, PotPlayer or QuickTime.
Colour controls for brightness, contrast, hue and saturation are genuinely useful on faded VHS, where the deck’s own controls are often gone. A two-year manufacturer warranty comes with it.
Who should buy the VIXLW RCA converter
Households with Hi8, VHS, older MiniDV or Digital8 tapes and a camcorder or VCR that outputs RCA. It is the cheapest credible path to files you can edit.
Where it falls short
There is no time-base corrector, so badly stretched tapes show rolling or dropped frames. Output is deinterlaced, so you cannot recover original interlaced fields, and long sessions pick up audible hum.
8. Fulfalic VHS to Digital Capture Card: Best for Recording While You Watch
VHS to Digital Capture Card – USB Video Capture Card with HDMI Loop Out, RCA AV to USB for VCR/DVD/Hi8/PS2/Wii, 1080P 30fps Analog to Digital Converter, Effortless Record & Preview Old Videos on TV/PC
RCA in with HDMI loop out
Switchable 720p or 1080p
1080p60 USB capture
2 year warranty
Pros
- HDMI loop-out shows the source on a TV while it records
- Switchable 720p or 1080p HDMI output for modern displays
- Detachable cables mean a broken lead does not kill the device
- Standard capture apps detect it with no vendor software
Cons
- Some owners report inconsistent USB detection in OBS
- One report of audio cutting out around the one-hour mark
- Bundled USB and HDMI cables are very short
- Manual is English only
The Fulfalic card solves a problem most converters ignore: you cannot watch what you are digitizing. It takes RCA or HDMI input, records to your computer over USB at up to 1080p60, and passes the picture out to a television or monitor at a switchable 720p or 1080p.
That makes it the right choice for digitizing at a relative’s house, where a second screen is more plausible than a second computer. It handles camcorders, VCRs, DVD players and retro consoles.
Owners like the value, the detachable cabling and the absence of vendor lock-in. The box is unusually generous: the card, an AV capture lead, a 3.5 mm audio to A/V cable, a one-metre HDMI cable, a USB male-to-male cable, an A/V female-to-female converter and a USB-C adapter.
As with several analog converters, you need to add a separate audio source in OBS before sound appears, and the manufacturer notes you must restart OBS Studio after audio setup. The manual is English only.
Who should buy the Fulfalic card
Anyone digitizing tapes away from their own desk who wants to monitor progress on a modern screen. It is 65 g and 2.76 x 2.76 x 0.55 inches with a two-year limited warranty.
Where it falls short
Some owners report the USB connection dropping in OBS while the HDMI output stays stable, and one report describes audio cutting out near the one-hour mark. The bundled cables are short enough that you will likely buy longer ones.

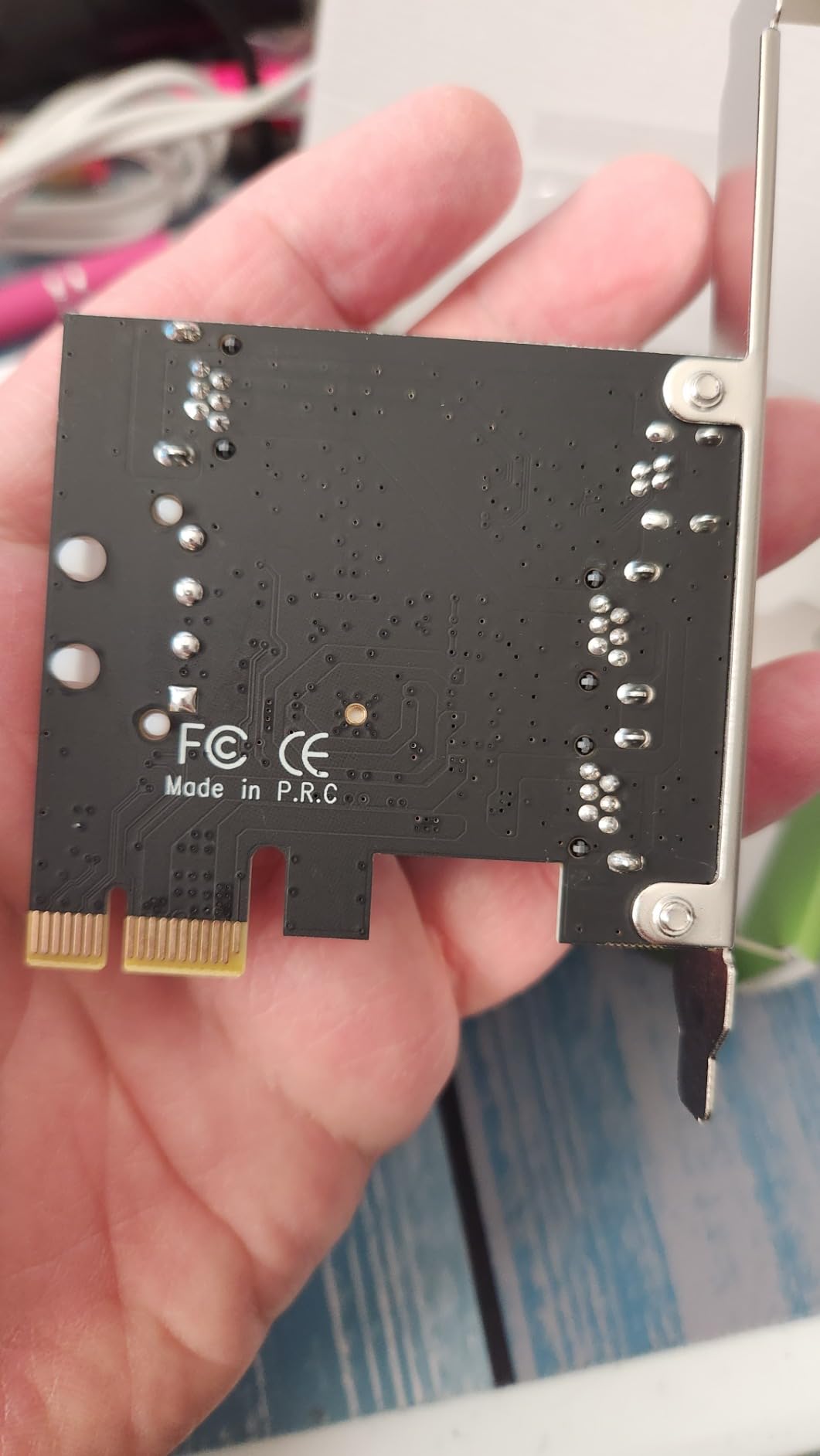

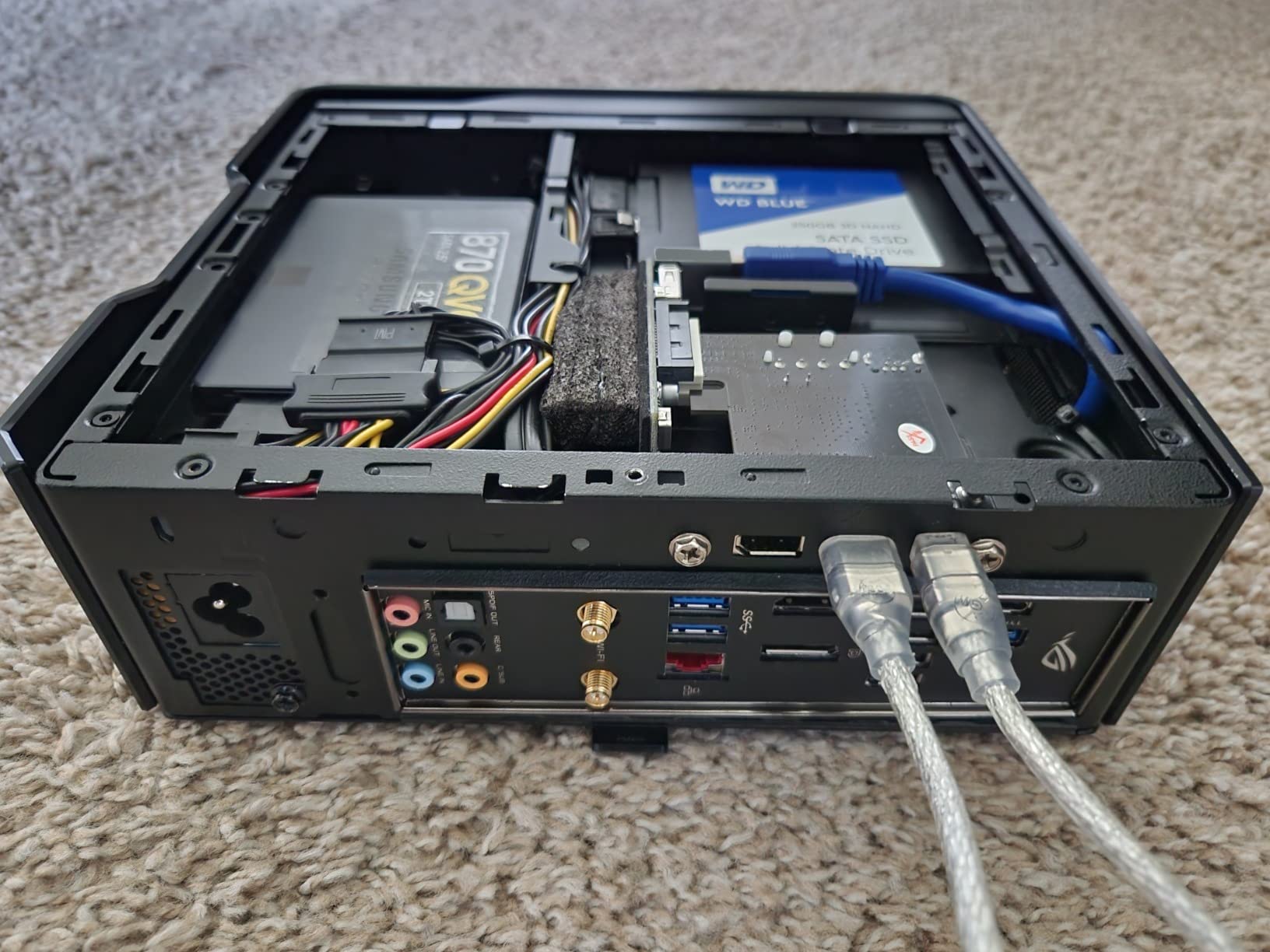

9. LinksTek PCIE-1394A FireWire 400 Card: Best for MiniDV, Digital8 and HDV Tapes
PCIE-1394A 4-Ports 1394A PCIE FireWire 400 Expansion Card for Windows Desktop PCs, 3X 6Pin and 1X 4Pin 1394A 400Mbps Ports, with 4Pin-6Pin 1394A Cables and Low Profile Bracket
4x FireWire 400 ports
400Mbps per port
Windows 98 through 11
Low profile bracket
Pros
- Adds four FireWire 400 ports to a modern desktop
- The practical way to move data off legacy DV camcorders
- Auto-negotiates 100 200 and 400Mbps speeds
- Plug and Play across a very wide range of Windows versions
Cons
- Some PCs need the Windows legacy driver enabled manually
- Requires a free PCIe slot and opening the case
- Windows only
- FireWire 400 tops out at 400Mbps by modern standards
If your tapes are MiniDV, Digital8 or HDV, FireWire is the only route that copies the original DV data without re-encoding it. This card adds four IEEE 1394a ports, three 6-pin and one 4-pin, to a Windows desktop through a PCIe x1 slot.
Each port runs at up to 400Mbps, or 50MB per second, and negotiates down to 100 or 200Mbps automatically. A low profile bracket and 4-pin to 6-pin cables are included.
Buyers arrive needing to rescue footage from older DV camcorders and find that it does the job once installed. Plug and Play behaviour is reported across Windows 98 through Windows 11 and Server editions.
Digitizing guides agree on the underlying problem this solves: MiniDV and Digital8 are FireWire 400 only, and a generic USB-to-FireWire adapter rarely produces a usable device on a modern machine. A real OHCI controller is the reliable route.
Who should buy the FireWire card
Windows users with a shelf of DV, MiniDV, Digital8 or HDV tapes and a desktop that has a spare PCIe slot. The transfer is a direct digital copy, which protects footage better than an analog capture chain.
Where it falls short
Some machines need the Windows legacy driver enabled by hand before the card appears. macOS dropped FireWire support long ago, older proprietary camcorder connectors still need adapters, and 400Mbps is slow by current standards.

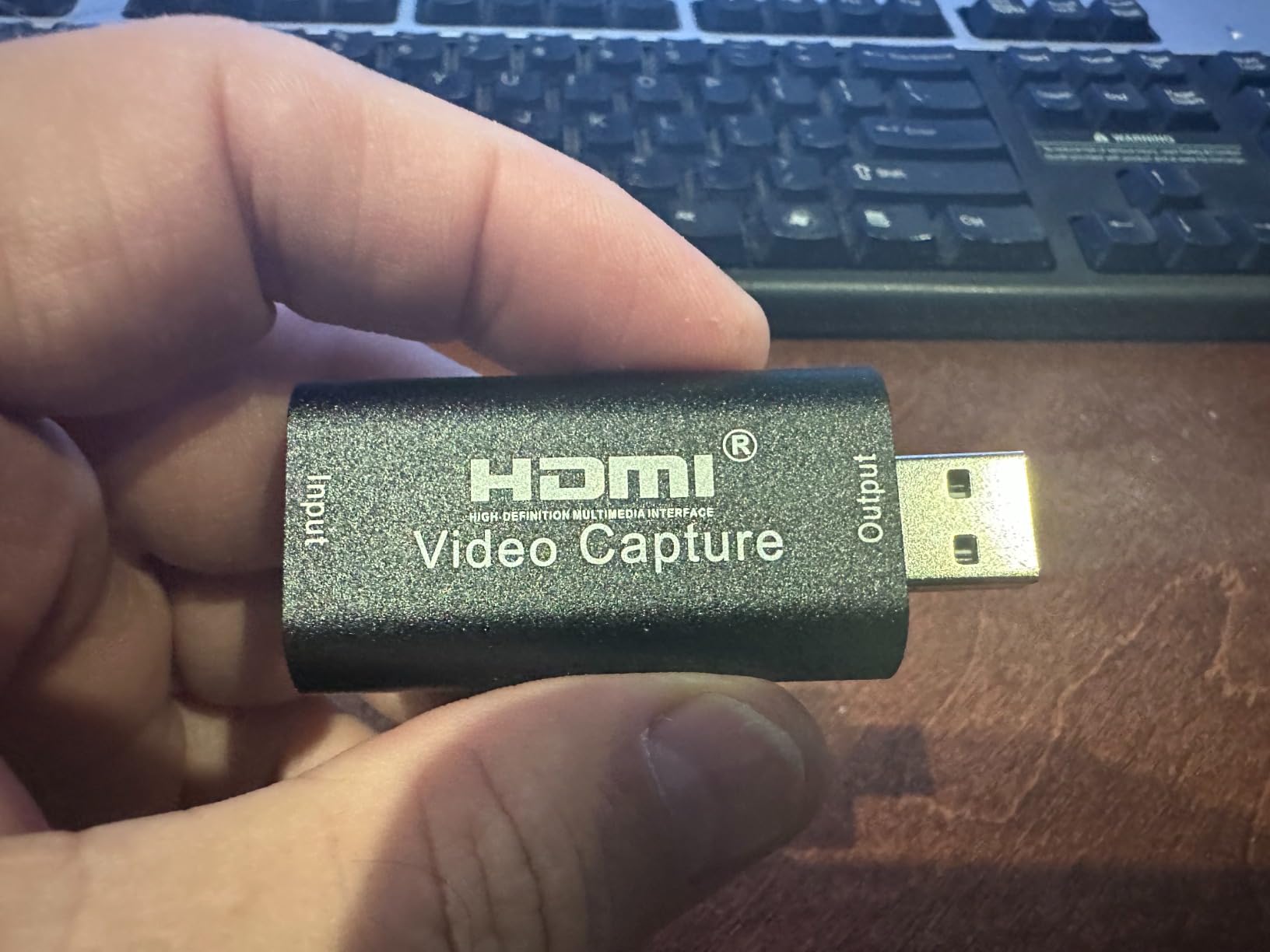

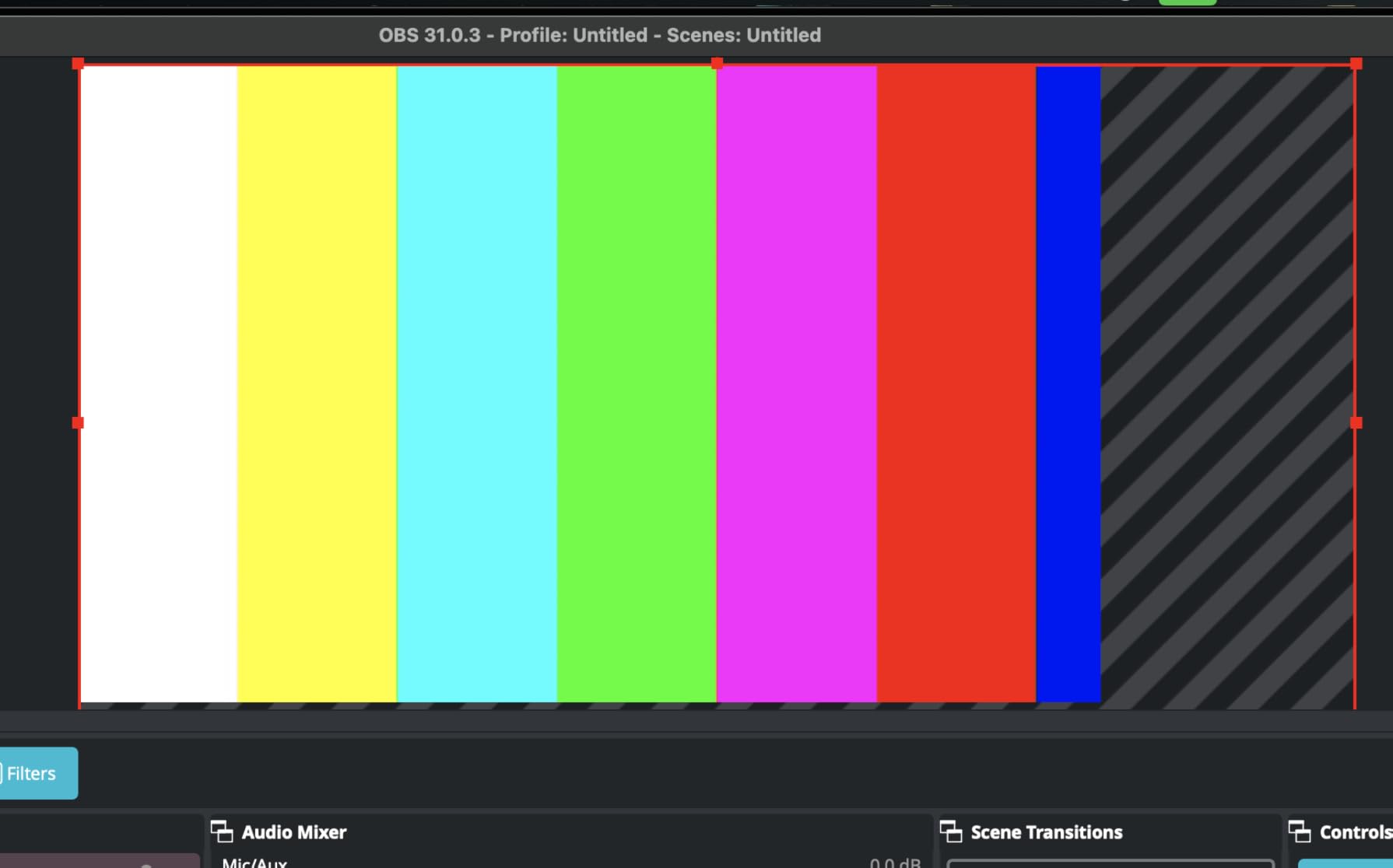

10. Audio Express AXHDCAP: Best Quick Capture Path Into OBS
Audio Express AXHDCAP 4K HDMI Video Capture Card, Cam Link Card Game Audio Adapter HDMI to USB 2.0 Record Capture Device for Streaming, Live Broadcasting, Video Conference, Teaching, Gaming
4K30 HDMI in
1080p30 USB out
USB 2.0
Lifetime warranty
Pros
- Low-cost entry point for HDMI capture into OBS
- No drivers and no external power
- Works on Windows macOS Linux and Android over OTG
- Accepts 4K input and outputs 1080p with stereo audio
Cons
- USB 2.0 only so no high frame rate capture
- Maximum output is 1920x1080 at 30 Hz
- Perceptible input delay for interactive use
- Connector can sit loose and drop on movement
The AXHDCAP is the simplest device here. It takes HDMI from a camcorder at up to 3840×2160 at 30 Hz and hands your computer 1920×1080 at 30 Hz with stereo audio over a single USB cable. Nothing to configure.
It measures 2.5 x 1.5 x 1 inches, ships with an installation guide and carries a lifetime warranty, which is a bold coverage claim for this tier.
Reviewers describe it as surprisingly capable for the money, particularly for showing an HDMI source on a laptop or recording casually through OBS. Cross-platform support extends to Linux and Android over OTG.
The criticisms are technical rather than about image quality: USB 2.0 bandwidth caps output at 1080p30, the input delay is visible in interactive use, and the plug can sit loosely enough that brushing the cable drops the signal.
Who should buy the AXHDCAP
Anyone who just wants a camcorder’s HDMI feed visible and recorded on a laptop, and who does not care about 60 fps. It is the least complicated way to prove a camcorder works before spending more.
Where it falls short
It cannot record above 30 fps, has no passthrough, and adds no HDMI output to a computer that lacks one. Do not buy it for live streaming where latency matters.

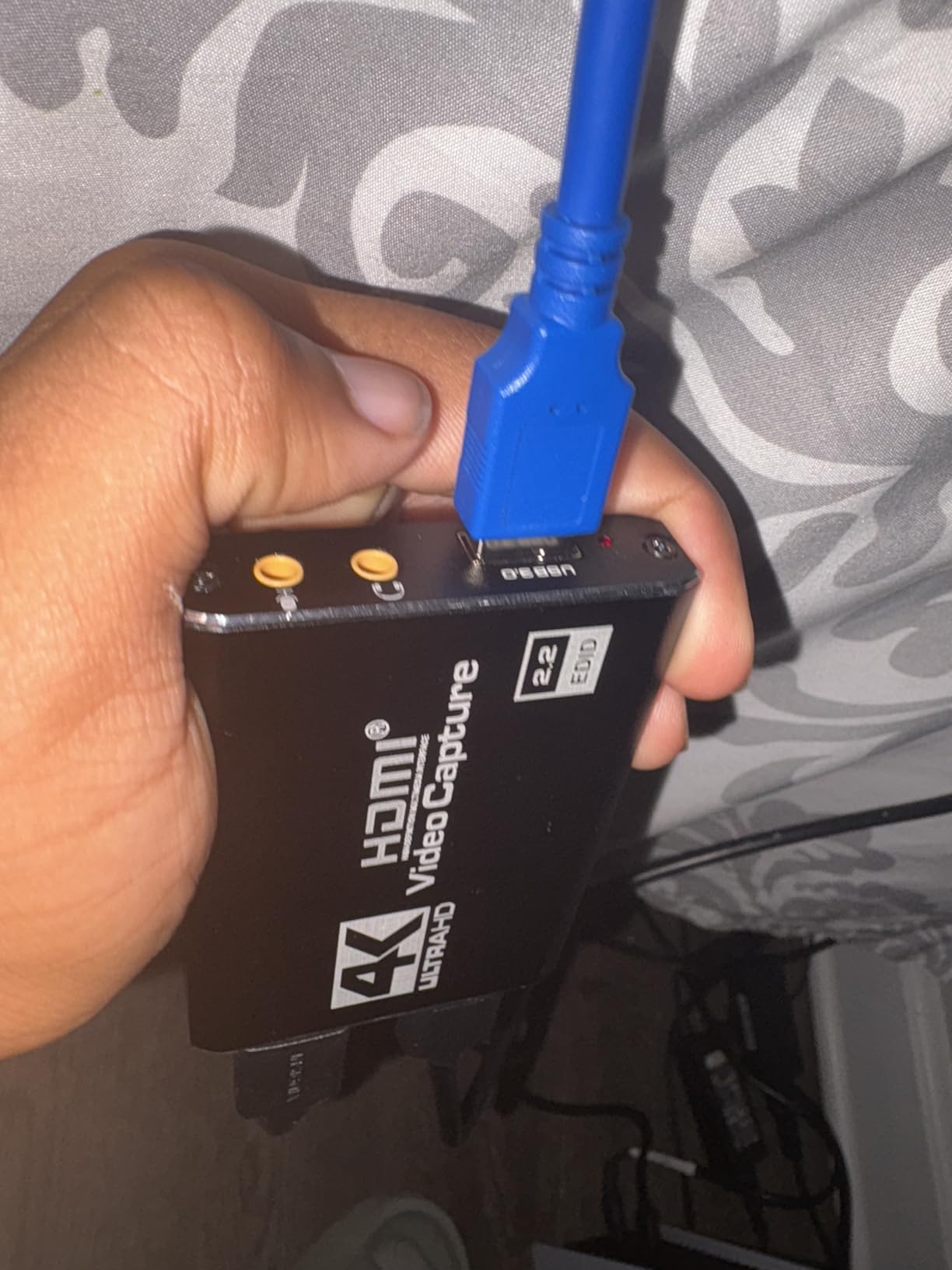

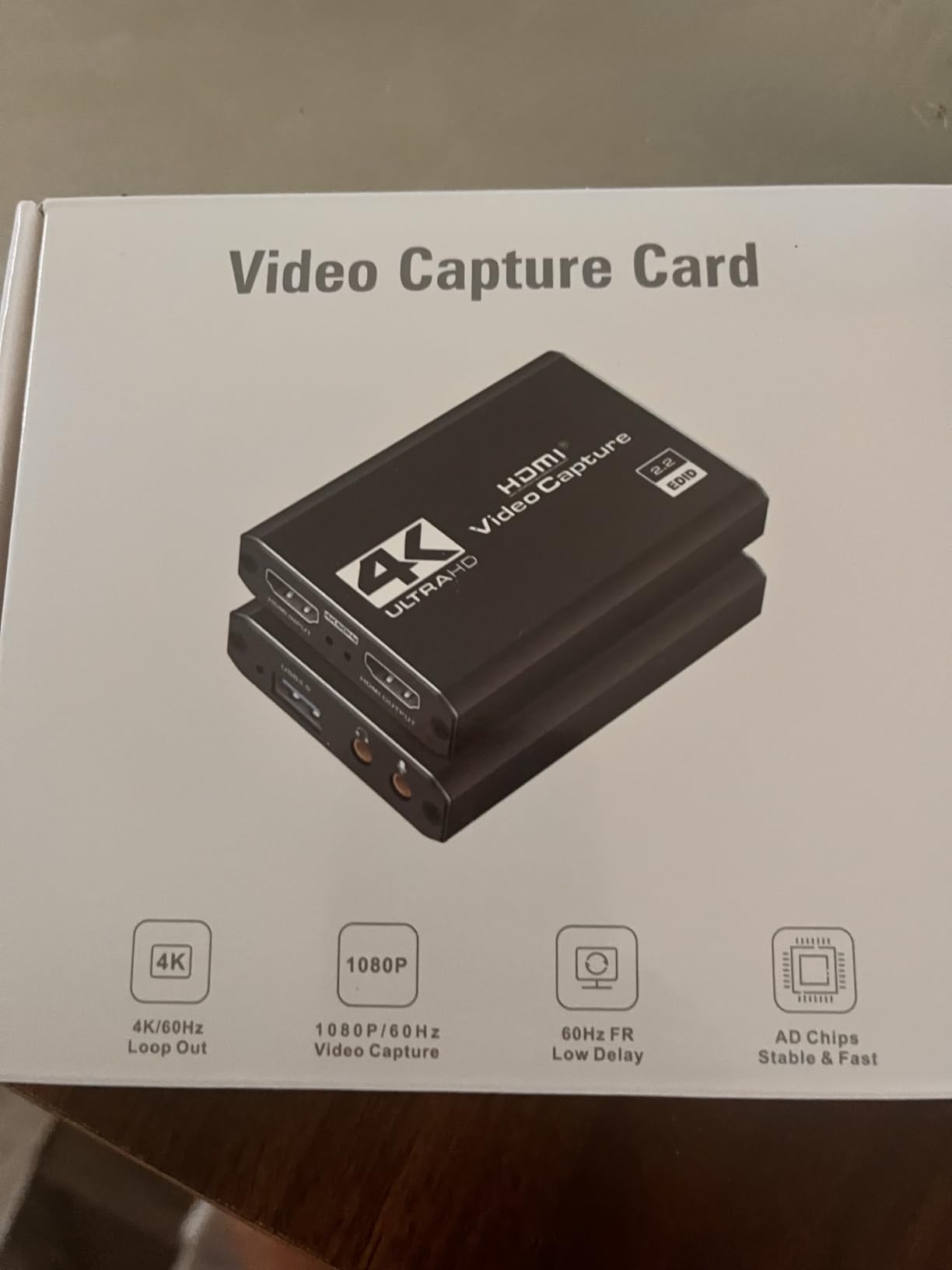

11. Dcyfol 1080p60 Capture Device: Best Budget Card With HDMI Loop-Out
Capture Card 4K HDMI Video Streaming to USB 3.0 1080P 60FPS Capture Device
4K HDMI in
1080p60 out
HDMI loop out
Bundled HDMI and USB-C cables
Pros
- 4K HDMI input with HDMI loop-out for preview while capturing
- Metal body and bundled cables feel more durable than typical budget cards
- Plug-and-play with OBS Streamlabs and XSplit
- Stable long streaming runs with good colour and audio
Cons
- USB connector is fragile and movement can freeze a stream
- Very few volume control options
- Some reviewers doubt the internal USB link is genuinely 3.0
- Needs a real USB 3.0 port for the stated output
The Dcyfol device is unusual at this level because it includes an HDMI loop-out. That means a camcorder feeds the card, the card feeds your PC, and the same picture still appears on a monitor or television.
Capture output is 1080p60 from a 4K input, and the box includes an HDMI-to-HDMI extension cable, a USB-C adapter and a USB extension cable.
Owners commonly treat it as a stand-in for a mid-range branded card, reporting stable multi-day streaming runs and good colour reproduction. The metal body at 0.21 kg and 1 x 1 x 2.7 inches feels more substantial than the price suggests.
Two things come up repeatedly in critical reviews. The USB connector is fragile, so any movement of the cable can freeze a stream and force a reset, and some owners report the port behaving like USB 2.0 despite the labelling.
Who should buy the Dcyfol card
Camcorder users who want to record to a computer and still watch on a second screen without paying for a pro card. It suits a fixed desk or tripod arrangement.
Where it falls short
Volume controls on the device are sparse and the headphone output runs loud. Any physical disturbance near the USB plug can interrupt a recording, which is a poor trait around active tape decks.

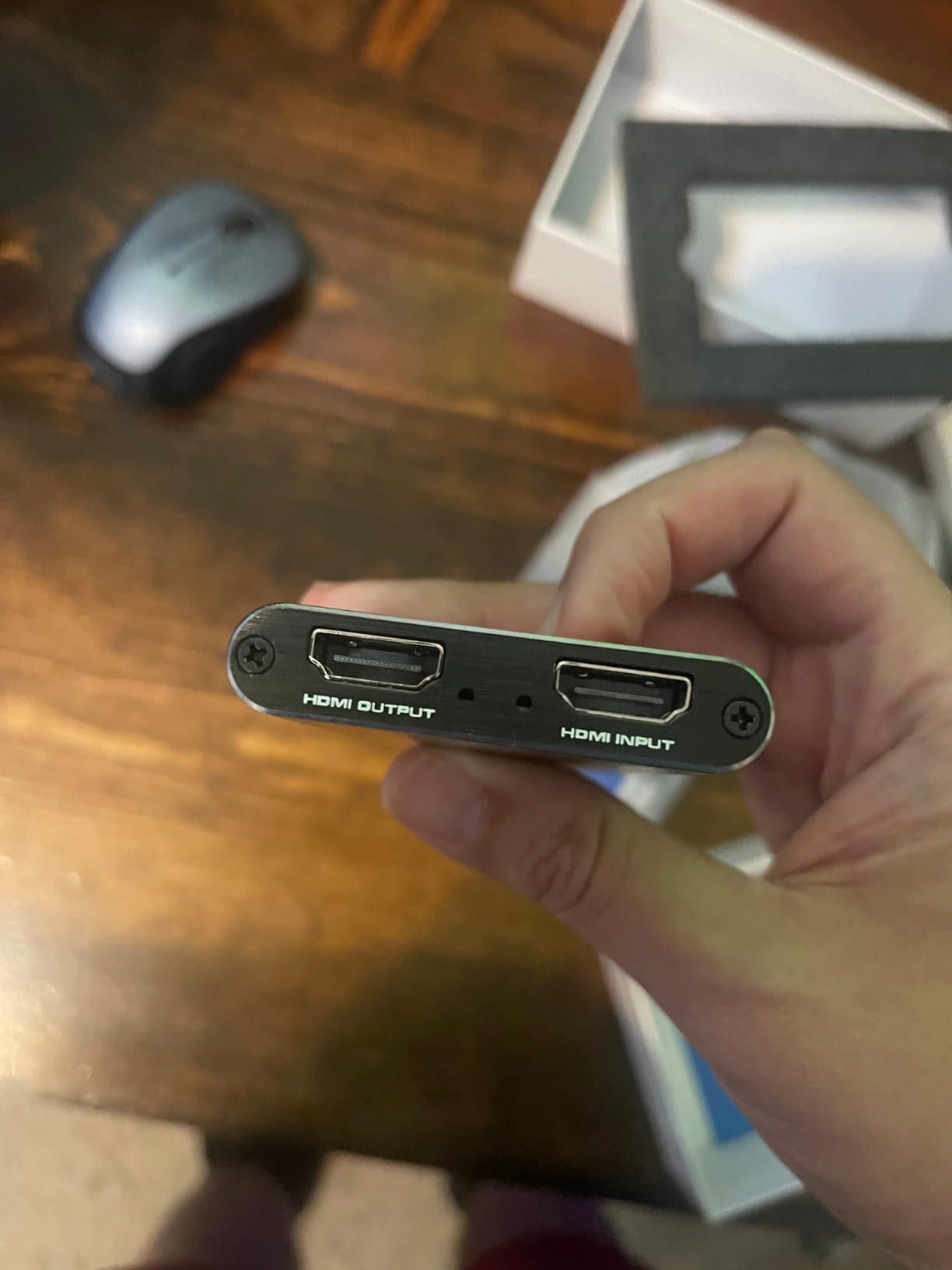

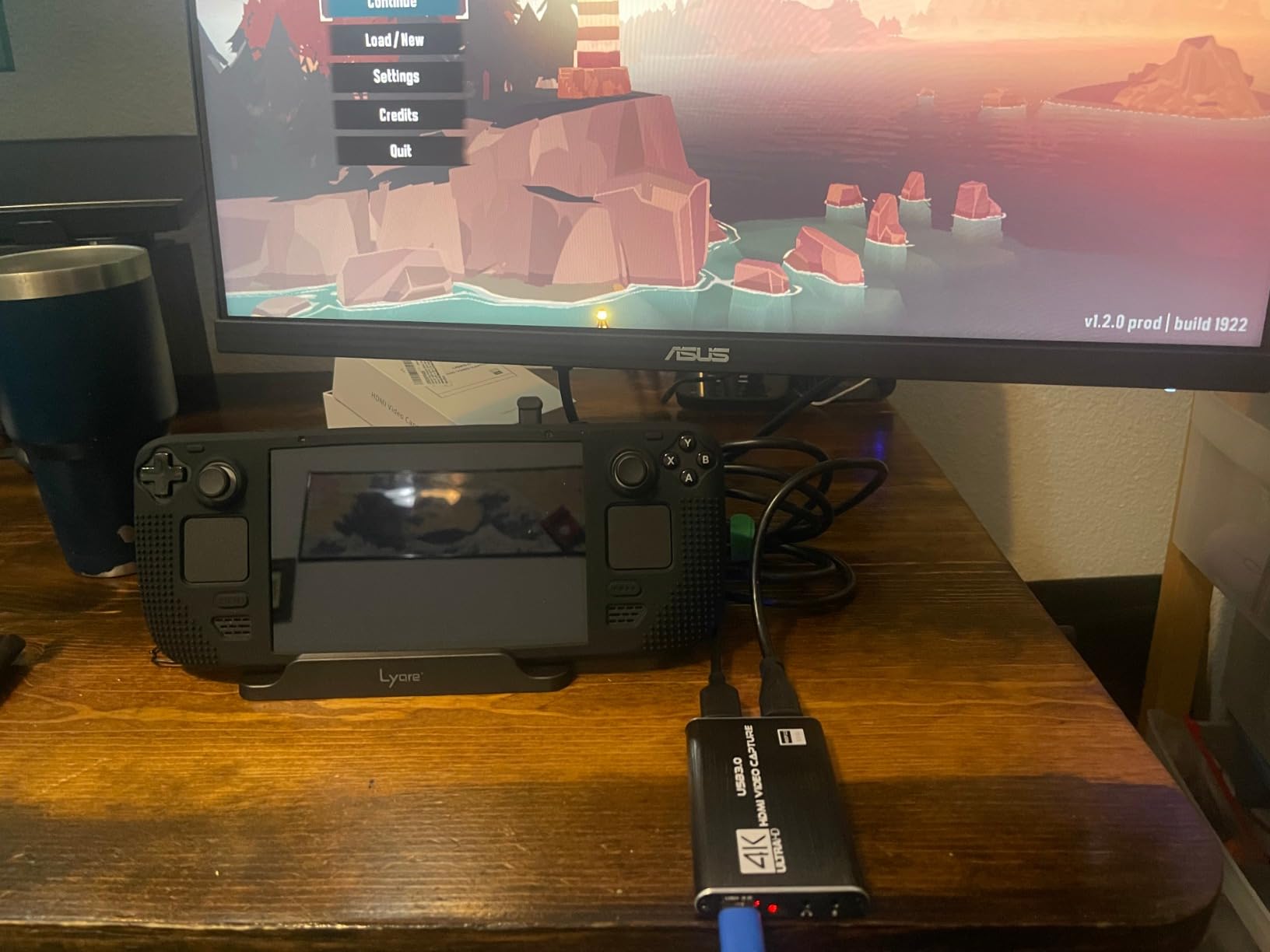

12. VIXLW 1080p60 Cam Link Card: Best for Plug-and-Play Webcam Use
4K HDMI Capture Card for Streaming, Full HD 1080P 60FPS USB 3.0 Cam Link Game Audio Video Capture Card, Work with Camera/Switch/Xbox/PS4/PS5/PC/OBS (Black)
1080p capture
HDMI loop out
3.5mm mic input
USB 3.0
Pros
- Identified automatically as a webcam with no drivers
- 1080p capture for camcorders DSLRs and set-top boxes
- HDMI loop-out for lag-free viewing
- Built-in 3.5mm mic input for commentary
Cons
- Output is limited to 1080p despite 4K in the title
- Freezing if capture settings are not configured correctly
- USB 3.0 port required for stable low latency
- Mic input accepts 3.5mm TRS headsets only
This is the card to try if you want a camcorder as a webcam this afternoon. It is identified automatically as a webcam device, with no driver install and no vendor application, so OBS, Zoom and conferencing apps treat it as a normal camera.
It captures at 1080p over USB 3.0, passes video through an HDMI loop-out without added delay, and includes a 3.5 mm TRS microphone input so you can add commentary directly.
With more than 1.6k reviews it is the second most established card here, and owners repeatedly praise the instant recognition and low CPU use across Windows, Mac and Linux.
Buyers are reminded that the real output ceiling is 1080p even though the product title leads with 4K, and that capture settings need to be configured correctly to avoid freezing.
Who should buy the VIXLW 1080p60 card
Anyone using a camcorder as a webcam or a second streaming camera, especially people running commentary and wanting a mic plugged straight into the card. It suits a laptop with limited ports.
Where it falls short
The 4K in the title is input only, so you are recording 1080p. The microphone socket takes 3.5 mm TRS headsets and nothing else, and a USB 2.0 port will not hold low latency.
How to Connect a Camcorder to a Capture Card and Record
Six steps cover almost every camcorder setup. The whole job takes about ten minutes once the ports match.
Check the OUT port on the camcorder. Use HDMI OUT, not HDMI IN. This single mistake causes most no-signal problems.
Plug the camcorder into the card. Camcorder HDMI OUT to card HDMI IN, or camcorder A/V OUT to the card’s RCA or S-Video input.
Connect the card to the computer. USB 3.0 or faster for HDMI cards; a PCIe slot for an internal card.
Set the camcorder to playback or output mode and choose a clean resolution such as 1080p60 or 1080i if your card cannot lock 1080p60.
Open OBS Studio and add a video capture device source, then pick the card and set the resolution to match what the card actually outputs.
Add audio as a separate input on most analog cards, restart OBS, then hit record and watch for dropped frames in the status bar.
No Signal From Your Camcorder? Work Through This Checklist
No signal almost always means one of four things. Check them in this order and you will find it in under five minutes.
Wrong port direction. The feed must leave the camcorder through OUT. An HDMI IN port cannot send a signal out.
Wrong class of card. A HDMI-only card cannot read RCA composite. Match the card’s input type to the camcorder’s output type.
EDID mismatch. The card and the camcorder may not agree on a mode. Force the camcorder to a fixed 1080p60 or 1080p30 output in its menu instead of Auto.
Resolution ceiling. If your camcorder sends 1080p60 and the card records 1080p30, that is a device limit, not a fault. Lower the source rate or change the card.
USB speed. On USB 2.0 many cards drop frame rate and resolution without warning. Use a port on the blue or teal USB 3.0 housing.
Format mismatch on analog. Set NTSC or PAL in the capture software to match the tape’s standard or you will get rolling colour bars.
Buying Guide: Seven Criteria That Decide Which Card You Need
Work through these seven checks in order. Most people can stop after the fourth.
Input type. HDMI, analog A/V, FireWire or SDI. This single answer removes most of the catalogue.
Capture resolution versus passthrough. A card can pass 4K60 to a TV and still record 1080p30 to your PC. Read the capture number, not the headline.
Frame rate. 30 fps is fine for interviews and archive work. 60 fps only matters for fast motion and certain streaming destinations.
Latency. Preview delay is normal and differs from passthrough lag. For archiving it is irrelevant; for live monitoring it matters.
Standalone recording. If you need to capture without a PC at a relative’s house or an event, look for a card with SD card recording and treat it cautiously. One review outlet we trust declines to recommend portable recorders at all, reporting devices that failed to write files or produced corrupted recordings with only a coloured LED to show it.
Mac support. Several cards in this guide list Mac support, but confirm the version. Vendor utilities often lag behind on macOS, and OBS is the safer path.
Build and warranty. Owners in this category care more about reliability than headline specs, because a corrupted file during a one-shot tape digitizing session cannot be repeated.
A word on what to avoid. The listings that dominate marketplace search results are anonymous grabbers with generic names, and their ratings sit as low as 2.0 and 3.0 out of 5 in the same categories where established brands carry 4.8. Named failure modes include unstable USB connectors, no way to monitor recording status, bundled cables that fail within months and bundled software that encodes worse than OBS.
If a camcorder will point at irreplaceable tape footage, buy from a brand with a warranty you can claim. If you want the vintage camcorder look for your next shoot, our retro camcorder guide covers the bodies that pair well with these capture chains.
MiniDV, HDV and Digital8 Tapes: FireWire or Analog?
FireWire gives you a bit-perfect digital copy; analog capture gives you a re-encode of an already degraded signal. That single sentence decides most tape projects, and it is the comparison users on r/camcorders keep asking about.
Use FireWire when you can. A DV or HDV stream copied over IEEE 1394 arrives on your disk exactly as it was written to tape, with no generational loss. The problem is purely practical: almost no modern PC has a FireWire controller, and generic USB adapters are widely reported to produce unrecognised device errors.
Use analog when you cannot. Many MiniDV and Digital8 camcorders will output composite video from their RCA jack, which the converter in pick seven reads happily. You lose the digital cleanliness, the output is fixed at 720 by 480 or 576, fields arrive deinterlaced, and worn tapes can roll without a time-base corrector.
A practical middle route is to use the camcorder purely as a playback deck over analog, capture once, and then store that file in two places. The second copy is not redundant; it is the only insurance that exists if the first drive fails.
Frequently Asked Questions
Can I digitize my MiniDV tapes?
Yes. MiniDV tapes hold digital video, and the cleanest transfer is over FireWire, which copies the original data bit for bit with no re-encoding. Most modern PCs no longer ship with a FireWire controller, so in practice many people play the tape on a DV camcorder and capture the RCA composite output with an analog converter instead. That route is cheaper and needs no internal card, but it is a re-encode of an already degraded signal and it cannot recover quality the tape has lost.
How do I convert old camcorder tapes to digital?
Work out which output your camcorder or deck has first. For FireWire, install an IEEE 1394a card in a desktop and connect the camcorder with a 6-pin cable. For analog A/V, plug the yellow composite and red and white audio leads into an RCA capture card. Then open OBS Studio, add a video capture device source, set the matching resolution, start recording and confirm the audio level before you press play on the tape.
How do I transfer a MiniDV camcorder to my computer?
FireWire is the correct method because it moves the original DV files straight off the tape without re-compressing them. Connect the camcorder with a FireWire cable, install an OHCI controller card if your PC has no such port, and let Windows detect the drive. Then copy the files at full speed rather than playing the tape in real time. Playback in real time only drops frames if the tape is damaged.
Can I watch MiniDV tapes without a camcorder?
Not directly, because MiniDV is a tape format and no computer ships with a tape drive. You need a camcorder, a Digital8 deck or a specialist MiniDV player to read the tape, and then either a FireWire connection to copy files off or an analog capture card to record the picture. Once copied, the files play in any video player on any platform.
Is Elgato or AVerMedia better?
Both build dependable capture hardware and the answer depends on your ports. Elgato is the stronger choice for an HDMI camcorder that needs a clean 1080p60 feed with no setup, while AVerMedia tends to cover more unusual input and standalone recording options. Judge each card by whether it has the input your camcorder actually uses rather than by the badge on the box.
Is OBS or Elgato better?
They solve different problems. The capture card is hardware that converts your camcorder signal into something a computer can read, and OBS is the software that records, streams and mixes it. Most owners report better results in OBS than in a bundled vendor utility, so treat the card as the box and OBS as the engine.
Do I need a capture card to use a camcorder as a webcam?
Only if your camcorder has an HDMI OUT port or an analog A/V out. Recent camcorders often present as a webcam over USB on their own, in which case no card is needed. If yours does not, a UVC-style capture card makes it appear as a normal camera in Zoom, Teams and OBS with no extra software. You will still need separate audio handling for any microphone or commentary.
What capture card works with an old RCA camcorder?
You need an analog capture card with RCA composite input, and ideally S-Video as well. Check that it supports your tape standard, NTSC or PAL, because several of these devices output a fixed 720×480 or 720×576 with no manual switch. Expect deinterlaced output and no time-base correction, which means worn tapes may show rolling or dropped frames.
Conclusion
For most people reading this in 2026, the answer is the Elgato Cam Link 4K. It is the card we would buy first for any HDMI camcorder, because it needs no drivers, no setup and no second screen, and it carries a rating of 4.6 across more than 14k owner reviews.
If your camcorder is older, the decision is made by the port, not the brand. HDMI out means a USB capture card, RCA out means an analog converter, FireWire means a DV-era desktop with an OHCI card, and SDI means professional PCIe ingest. Pick the matching class, check the capture resolution rather than the input resolution, and buy from a brand whose warranty you can actually claim.
Once the signal is clean, record in the highest quality your machine can hold and keep two copies of anything irreplaceable. That habit matters more than any spec on this list.
